CS839 · Topics in Advanced Robotics · UW–Madison

Data Composition vs Architecture in Robot Imitation Learning

When does narrow-task training transfer? A study across 16 datasets and 3 architectures.

Aswinkumar · CS839 Final Project · Prof. Hagenow · Spring 2026

If a human can do it after one demo, why can't the robot?

Single-sponge training, single-sponge inference

Single-sponge training, multi-sponge inference

Imitation learning policies do not generalize the way humans do. We measure how badly — and what data closes the gap.

Research Question

★When does narrow-task training transfer to harder task variants in imitation learning, and how do architecture and data composition interact to determine compositional generalization?

Q1How do K (Known, 64 ep), R (Random, 64 ep), Mixed (50/50, 64 ep), Combined (100/100, 128 ep) dataset variants affect spatial generalization?
Q2Does training on one task generalize to harder task variants?
Q3Does architectural pretraining (SmolVLA, Pi0.5) close the human-robot generalization gap?

Task Family — Compositional Decomposition

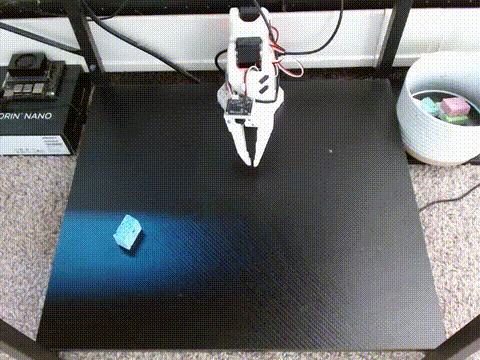

ST1Single sponge, clean

Pick the blue sponge and place it in the bowl.

D1-K (64)
D1-Mixed (64)
D1-R (64)
D1-Combined (128)

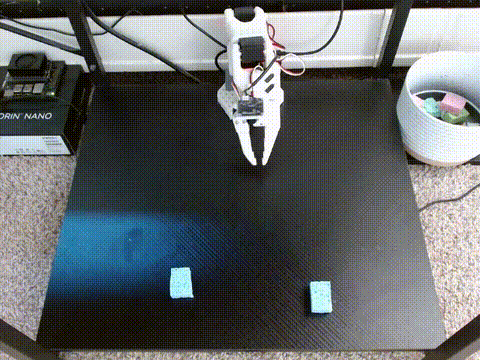

ST2Multi sponge, clean

Pick all blue sponges (2) and place them in the bowl.

D2-K (64)
D2-Mixed (64)
D2-R (64)
D2-Combined (128)

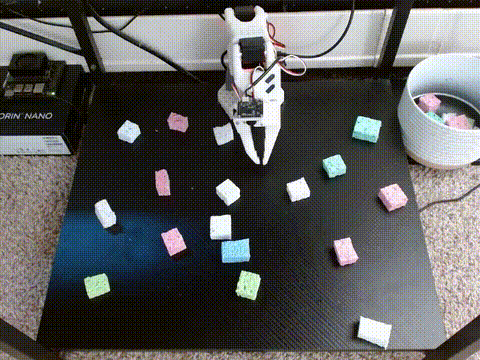

ST3Single sponge + distractors

Pick the blue sponge from a clutter of distractors.

D3-K (64)
D3-Mixed (64)
D3-R (64)
D3-Combined (128)

ST4Multi sponge + distractors (held out)

No training data collected — tested only via D_Universal as a pure compositional generalization probe.

ST3 and ST4 evaluation in progress for final report (5 / 6).

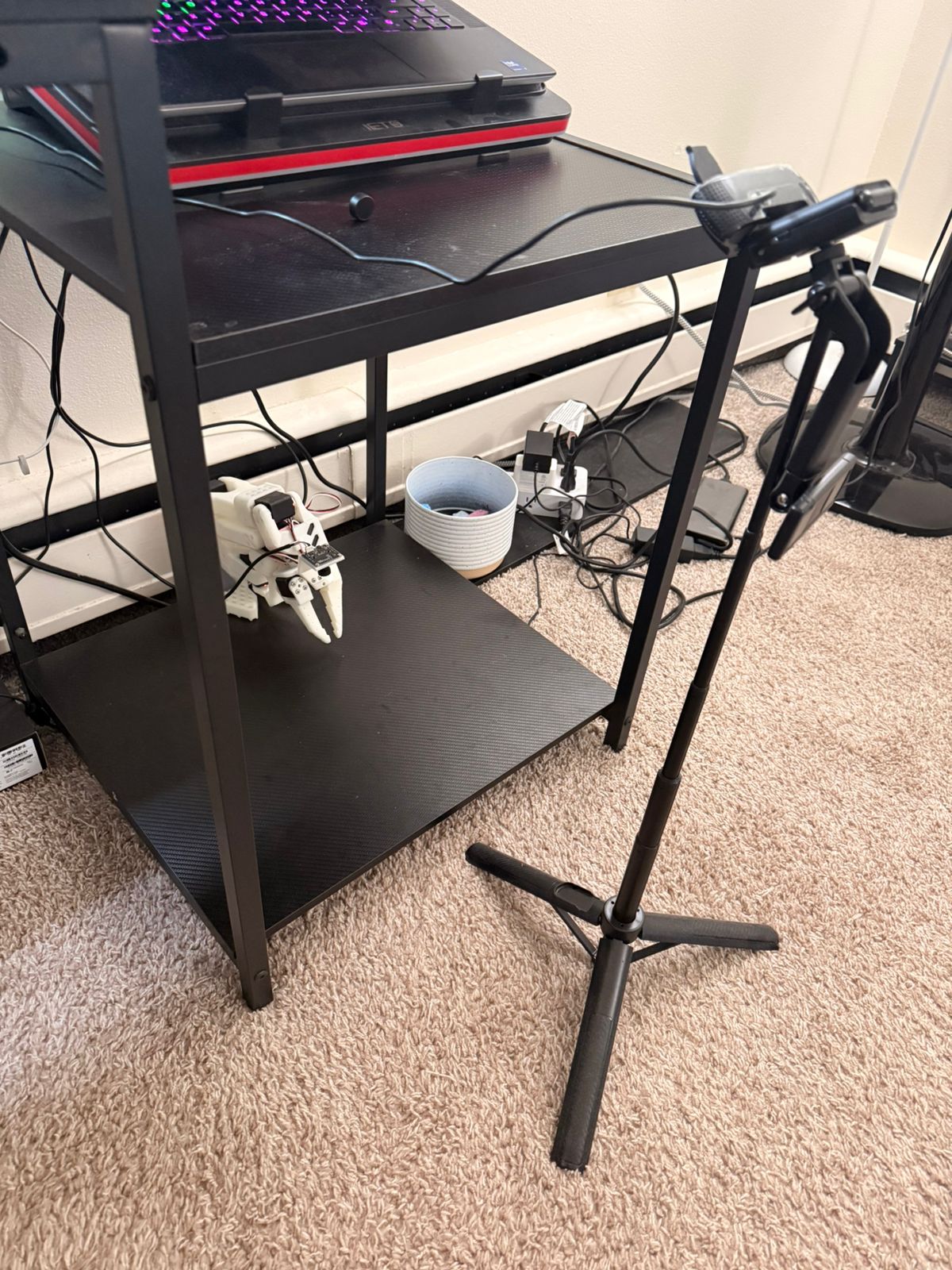

From Teleoperation to 16 Dataset Recipes

384

episodes collected

5.7 hours

total collection time

51 h video + 30 s/episode reset

episodes × 3 tasks (T1, T2, T3)

🤗 HF Open dataset: huggingface.co/datasets/aswinkumar99/LeRobot-SO101-Pick-Place — Page 1, Trending LeRobot tag

	K	R	Mixed	Combined	Cross-task
T1	D1-K	D1-R	D1-Mixed	D1-Combined	D_Universal · D_D2D3 D_D1D2-Half · D_D1D3-Half
T2	D2-K	D2-R	D2-Mixed	D2-Combined
T3	D3-K	D3-R	D3-Mixed	D3-Combined

Total: 16 datasets

Three Architectures, Three Design Philosophies

ACT

~84 M params

Transformer encoder–decoder + CVAE

Properties

Action Chunking Transformer (Zhao et al., ALOHA)
Trained from scratch — no visual or language priors
Predicts a horizon of future actions per observation
CVAE smooths multi-modal demonstrations

Fine-tuning recipe (cloud_training/train_one.sh)

--policy.type=act — trained from scratch
60 000 steps · batch 32 · save every 15 000
Cameras: overhead + wrist (native)

Prediction: Should plateau without data scale.

SmolVLA

~450 M params

SmolVLM-2 (256 M) + action expert (~200 M)

Properties

Hugging Face open VLA, released 2025
Pretrained on community LeRobot datasets
VLM backbone provides language + visual grounding
Designed for small-data downstream fine-tunes

Fine-tuning recipe (cloud_training/train_one.sh)

--policy.path=lerobot/smolvla_base
20 000 steps · batch 128 (-all) / 64 (splits) · save every 5 000
Cameras renamed: overhead→camera1, wrist→camera2

Prediction: Should benefit from limited data via VLM grounding.

Pi0.5

~3.4 B params

PaliGemma (3 B) + flow-matching action head

Properties

Physical Intelligence π₀.₅ (2025)
Flow-matching policy on continuous actions
Trained cross-embodiment on diverse robots
High-level VLA reasoning + low-level expert

Fine-tuning recipe (cloud_training/train_one.sh)

--policy.path=lerobot/pi05_base · BF16 · trained on H200
train_expert_only=true · freeze_vision_encoder=true
20 000 steps · batch 32 · LR 5e-5 · 1 000-step warmup
Cameras renamed: overhead→base_0_rgb, wrist→right_wrist_0_rgb (+1 empty)

Prediction: Robust priors but higher inference cost.

DiT excluded after pre-flight — failed in-distribution evaluation. Param counts are approximate.

Training Structure — 202 GPU-hours on Cloud Infrastructure

202

total GPU-hours

ACT 48 h

SmolVLA 72 h

Pi0.5 46 h

DiT (excluded) 36 h

        Per-model averages: ACT ≈ 3 h × 16 = 48 h · SmolVLA ≈ 4.5 h × 16 = 72 h · Pi0.5 ≈ 6.6 h × 7 = 46 h · DiT ≈ 9 h × 4 = 36 h.


ACT SmolVLA

6 × RTX PRO 6000 Blackwell

parallel training pool

Wall-clock

26 h

GPUs

GPU-hours

156 h

• 32 models — ACT × 16 (~3 h each) + SmolVLA × 16 (~4.5 h each)
• Docker image: huggingface/lerobot-gpu
• Launched via train_matrix.sh all & train_combo_matrix.sh
• ACT: 60 K steps / SmolVLA: 20 K steps

Pi0.5

NVIDIA H200

single-GPU run for the 3.4 B-param model

Wall-clock

46 h

GPU-hours

46 h

• 7 models (3 base × -all + 4 combo)
• --policy.dtype=bfloat16 · batch size 32
• train_expert_only=true, vision encoder frozen
• 20 K steps · 1 K-step warmup · LR 5e-5

Inference

RTX 4090 Mobile

on-robot laptop

ACT

30 Hz

SmolVLA

6 Hz

Pi0.5

5 Hz

~6× speed gap between ACT and the VLA policies — relevant to the time-to-success results.

DiT × 4 attempted but excluded after pre-flight (zero in-distribution success). All other 39 models converged.

Evaluation Protocol & Dual Metrics

× 1.0

Known — 6 marked positions on the bench

× 1.5

Random — uniformly placed on the bench

Per cell

16 trials = 8 Known + 8 Random

Score = (K_wins × 1.0) + (R_wins × 1.5) Maximum 20

Random positions are weighted 1.5× to penalize position overfitting: a model that memorizes the marked spots will score 8 / 20, while one that generalizes earns the full 20.

Metric 01

Success rate (out of 20)

Measures what succeeds.

Metric 02

Median time-to-success

Measures how decisively.

Identical pre-generated scenes across all models.

Custom iPad Dashboard for Field Evaluation

01Launch evaluations from beside the robot
02One-tap failure-mode tagging (G / C / S / P / D / O)
03Finish-episode-early button for fast successes
04Eliminates manual CSV bookkeeping & timing inconsistency

Enabled 480 rollouts in a weekend without transcription errors.

ST1 Result 1: Marked Positions Are a Trap

D1-K → ACT

10 / 20

D1-K → SmolVLA

10 / 20

Identical score across architectures — the failure is in the data, not the model.

K-only training memorizes pixel→action shortcuts rather than learning a sponge-grasping primitive.

K = Known (64 ep)R = Random (64 ep)Mixed = 50/50 (64 ep)Combined = 100/100 (128 ep)

ST1 Result 2: Cross-Task Data Helps — Differently

ACT — D1+D3-Half

20 / 20

→ distractor data helps ACT.

SmolVLA — D1+D2-Half

20 / 20

→ multi-object data helps SmolVLA.

Architectures differ in which auxiliary data they need. SmolVLA's VLM grounding handles distractors implicitly; ACT must see them explicitly.

K = Known (64 ep)R = Random (64 ep)Mixed = 50/50 (64 ep)Combined = 100/100 (128 ep)

ST2 Result: Half-Mix Captures Most of the Universal Benefit

D1+D2-Half — ST2 score

ACT 18.5 / 20

SmolVLA 13.0 / 20

Pi0.5 17.0 / 20

Adding only 64 multi-sponge episodes to D1 nearly closes the gap to full Universal training.

A small amount of task-specific data is qualitatively different from no task-specific data. The compositional threshold is low.

K = Known (64 ep)R = Random (64 ep)Mixed = 50/50 (64 ep)Combined = 100/100 (128 ep)

Better Data → Faster, More Decisive Policies

ST1 — median time-to-success

ST2 — median time-to-success

SmolVLA – D_Universal: ST1 in 6 s | ST2 in 71 s

SmolVLA – D1-Combined: ST1 in 24 s | ST2 fails

Broader training yields more decisive trajectories — the model knows which sponge to grasp first.

K = Known (64 ep)R = Random (64 ep)Mixed = 50/50 (64 ep)Combined = 100/100 (128 ep)

Failure Modes Track Training-Data Gaps

Failure code legend

GGrasp miss
SMissed sponge
CWrong color
PPlacement
DDrop mid-trajectory
OOther

ST1 failures are nearly all G (grasp) — a hand-eye coordination / visual alignment problem, not a motor one. ST2 introduces D (drop) and S (missed sponge) — chaining and decisiveness problems that emerge when multi-object behavior is required.

K = Known (64 ep)R = Random (64 ep)Mixed = 50/50 (64 ep)Combined = 100/100 (128 ep)

Three Findings — and What Could Still Be Wrong

Findings

Marked-position training severely overfits.

D1-K models score 10 / 20 across both ACT and SmolVLA.

Single-task training cannot compose.

D1-Combined → ST2: 2.5 – 7.0 / 20 across all architectures.

Cross-task data improves both success rate and speed.

D_Universal completes ST1 in 1 / 4 the time of D1-Combined.

Threats to validity

Statistical

8 trials per K / R split → ~±35 % binomial CI per individual cell. Mitigated by reporting cross-cell patterns.

Checkpoint bias

Single 20 K checkpoint may favor faster-converging architectures. Pi0.5 / SmolVLA may be undertrained relative to potential.

Scene generalization

ST3 distractor configurations differ structurally from training (we cannot replicate exact arrangements) — by design, but worth noting.

What's Next

Next — 5 / 6

Final Report

ST3 distractor robustness
ST4 compositional test
Full failure-mode atlas

Follow-up

Checkpoint Dynamics

5K / 10K / 15K / 20K analysis
Across architectures
Training-time efficiency comparison

Future

Beyond This Study

Architecture × data full grid
Lighting robustness
Real deployment evaluation
